MORA MMIX W1 care basin mixer
Mora MMIX combines elegance and ergonomic design with energy-efficiency. Soft geometric curves and a timeless style characterise the entire Mora MMIX range. The mixers were developed according to our unique EcoSafe™ concept focusing on low energy consumption and long-term environmental care.
- Description
- Chrome, incl. s-connection (2x701001)
- Article number
- 731421.DB
- EAN
- 7391887232473
PROPERTIES
- ESS (Energy saving system)
- Soft closing with ceramic cartridge
- Adjustable flow control and temperature limiter

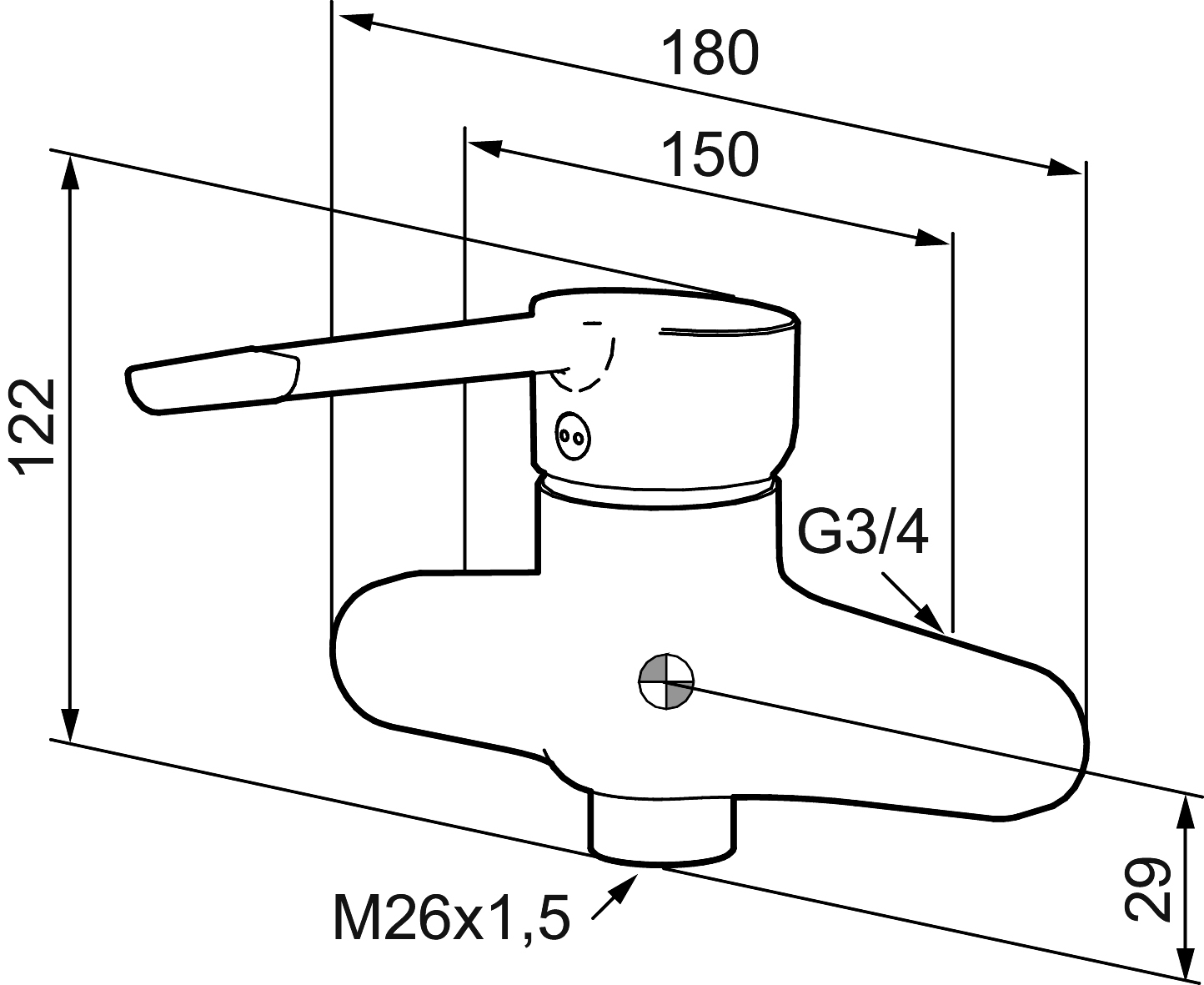

- Projection with connectors 163 mm
- Approved non-return valves, EN-Standard EN1717
- Spout must be ordered separately
Enter your e-mail address, then the parts list will be sent to your inbox.
| No. | Art no. | RSK | Description |
|---|---|---|---|
| 1 | 409389.AE | 8344867 | Lever, complete |
| 2 | 409390.AE | 8344874 | Care lever, complete, chrome |
| 3 | 409392.AE | 8344866 | Colour marking and mounting screw for lever |
| 4 | 409391.AE | 8344865 | Cover nut |
| 5 | 409393.AE | 8345179 | Lock nut for cartridge, incl service tool |
| 6 | S600273 | 8387230 | Ceramic cartridge with service tool, cold start (green ring) |
| 6 | 409405.AE | 8345205 | Ceramic cartridge, Turbo, incl service tool |
| 7 | 439060.AE | 8295361 | Lock nut |
| 8 | S600298 | 3870203 | Service tool |
Byggvarubedömningen
modal.bvb.desc;
Accepted installation instructions
Leadfree
Lead Free means that we have replaced the lead normally found in brass alloys. In this way, we get products with less environmental impact. Lead Free-labeled products contain less than 0.1% lead and are thus classified as lead-free.
Energyclass
The table below the product shows the energy class of the mixer. Certificates for energy labeling can be found under documents.
