MORA FLEXX bath & shower system kit
Discontinued
In the Mora Flexx collection, strong focus has been placed on design. Soft, curved shapes are used consistently to create a coordinated look. This, along with our energy-saving functions and well-known high quality, makes them very popular with plumbers. Also see our shower and bath packages – smart all-in-one solutions with an overhead shower or hand shower set.
- Description
- Chrome, incl. s-connection (2x701001)
- Article number
- 282100.DB
- EAN
- 7391887244216
PROPERTIES
Consist of:
Mora Flexx thermostatic mixer art.no. 280100.DB
- Swivel spout with built-in diverte
- Pressure balanced thermostatic mixer
- Temperature handle with safety stop at 38°C
- With Eco-function
- Approved non-return valves, EN-Standard EN1717
Mora Flexx Shower System S5 art.no. 280005
- Diverter with ceramic cartridge
- Shower hose in metal, PVC- and BPA-free
- With Easy-Clean anti-limescale system
- Shower bar can be shortened if required
- Flexible wall bracket ±5 mm in height and 50–100 mm from wall, 2x18 mm spacers included, with sealing, hidden pipe joint
- Connection with G1/2
- Diverter can be mounted with lever pointing in chosen direction
- Eco (energy and water saving hand shower 9 l/min, shower head 12 l/min)
- Three jet settings on hand shower: 1:Normal 2:Combi Pulse 3:Pulse Massage

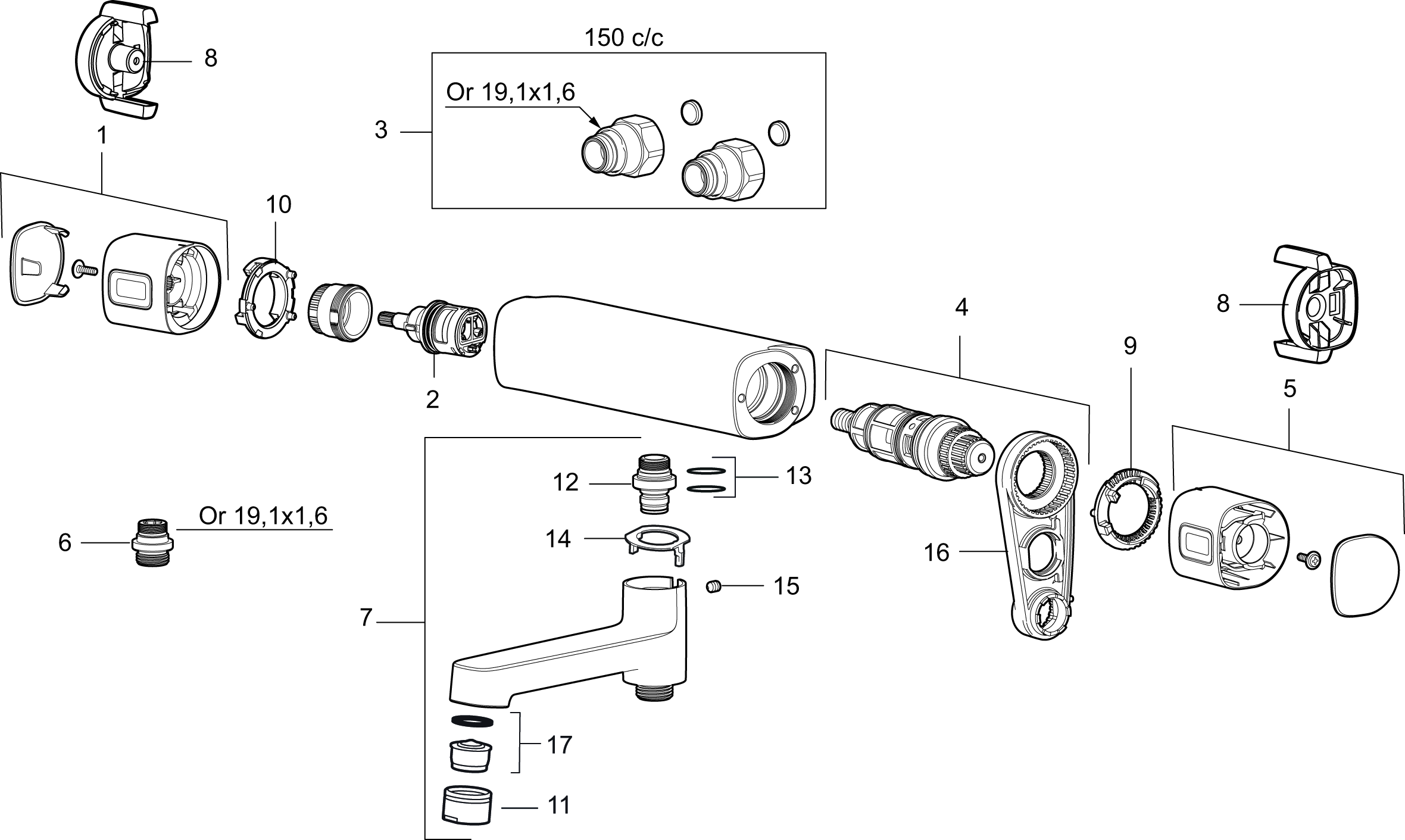

| No. | Art no. | RSK | Description |
|---|---|---|---|
| 1 | 409460.AE | On/off handle, complete | |
| 2 | 707977.AE | Ceramic headwork, reversible | |
| 3 | 409360.AA | 8187781 | Inlet connector 150 c/c (left-handed thread), retail packed |
| 4 | S600275 | 8397029 | Thermostatic cartridge, complete, incl. service tool |
| 5 | 35483109 | 8592031 | Temperature handle, complete |
| 6 | 409365.AE | 8187026 | Nipple M18x1 - G1/2 |
| 8 | 35976209 | 8592039 | Care-handle, black, 2 pcs |
| 9 | 38523000 | 8592058 | Scalding protection ring |
| 10 | 38531000 | 8592059 | Stop ring, standard |
| 10 | 38531040 | 8592060 | Stop ring, reversible |
| 11 | 131415.AE | 8281512 | Housing M24 utv., 15 mm, chrome |
| 12 | 409366.AE | Nipple M18x1 with o-ring for bath mixer | |
| 13 | 209519.AE | 8938340 | O-ring, for swivel spout |
| 14 | 38521000 | 8295345 | Stop ring |
| 15 | 708655.AE | 8295447 | Locking screw |
| 16 | S600298 | 3870203 | Service tool |
| 17 | 139783.AE | 8281546 | Aerator inlet, 20–24 l/min at 300 kPa |

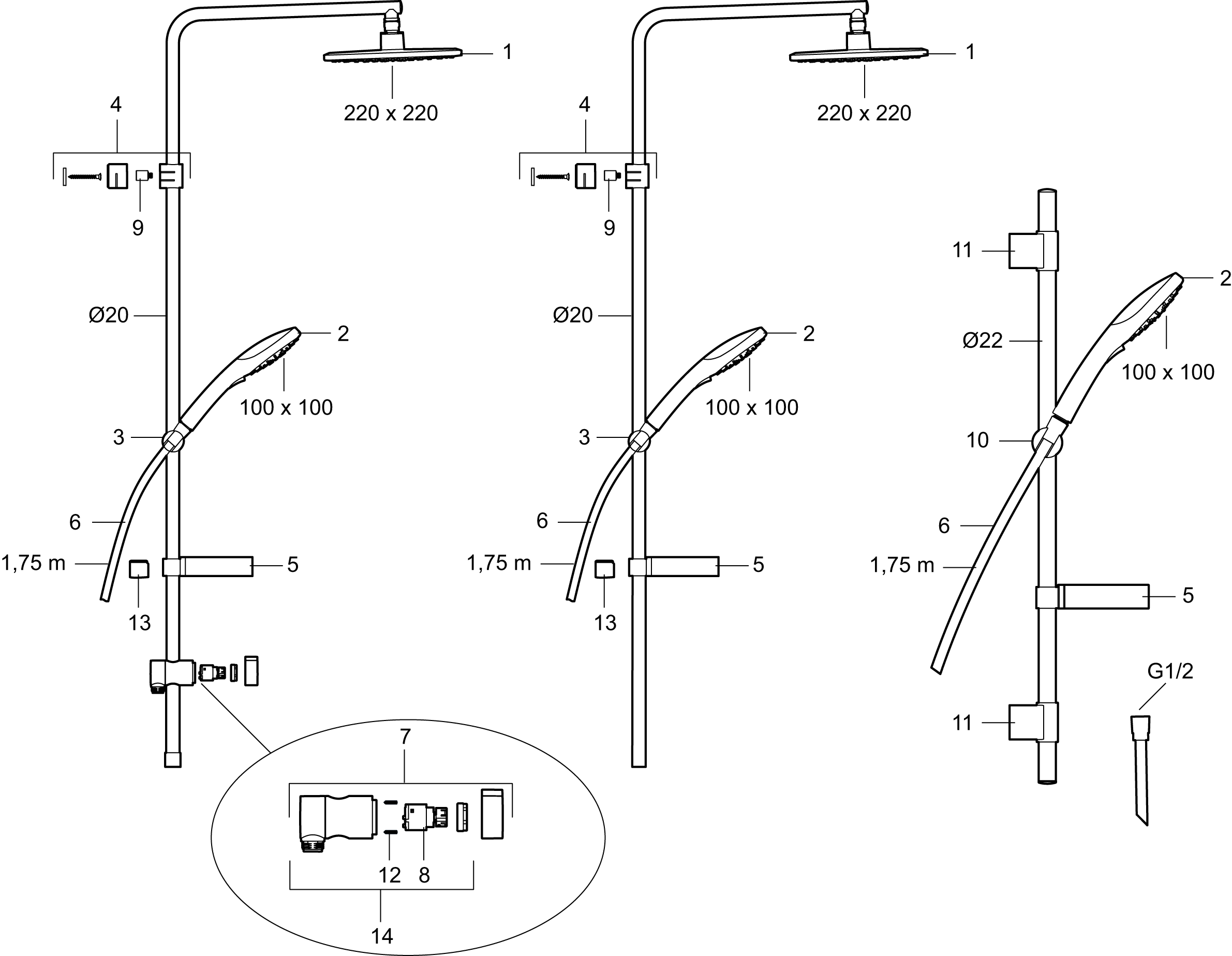

| No. | Art no. | RSK | Description |
|---|---|---|---|
| 1 | 84899500 | Shower head | |
| 2 | 130369 | Hand shower | |
| 3 | 409418.AE | 8284740 | Slider |
| 4 | 94712000 | 8186605 | Wall bracket |
| 5 | 409416 | 8185645 | Soap dish |
| 6 | 131170.AE | 8251927 | Shower hose in metal, 1750 mm, chrome |
| 7 | 409422 | 8541659 | Diverter, complete |
| 8 | S600321 | 8239708 | Cartridge for diverter |
| 9 | 27925000 | 8180419 | Extender, 18 mm, 2 pcs |
| 10 | 130363.AE | 8762730 | Slider |
| 11 | 409435.AE | Wall bracket | |
| 12 | 139812.AE | 8295323 | Stop screw M5x20 |
| 13 | 139912.AE | 8221715 | Distrance ring Ø18, Ø20 and Ø22 mm, for soap dish 409416 |
| 14 | 409430.AE | 8541683 | Diverter |
Byggvarubedömningen
modal.bvb.desc;
Accepted installation instructions
Leadfree
Lead Free means that we have replaced the lead normally found in brass alloys. In this way, we get products with less environmental impact. Lead Free-labeled products contain less than 0.1% lead and are thus classified as lead-free.
Energyclass
The table below the product shows the energy class of the mixer. Certificates for energy labeling can be found under documents.
