MORA tronic compact WMS, with thermostatic function, battery operation

Find retailers
Description
Chrome, battery operation, included battery, excluded mounting plate
Article number
720263
EAN
7391887251290

PROPERTIES

  • Tronic Copmpact with possibilities of wireless connection
  • Thermostatic function, with adjustable temperature
  • Battery operation, can be converted to mains operation
  • Connection at the back, connection are ordered separately
  • Solenoid valve, shut-off valve and electronics integrated in the shower head
  • Programmable start button. Rinsing time from 10–60 seconds, (30 seconds is the factory preset)
  • Flush Timeout - safety shut-off to prevent flooding, maximum of 5 minutes
  • Jet angle adjustable +/- 5°
  • Flow limiter 9 l/min
  • Can be turned off by solenoid valve (eg for cleaning)
  • Low power consumption - Long life
  • Equipped with function for thermal disinfection against legionella
  • IP class sensor, IP67

    Installation:
  • The power cable between the shower head and the start button should ideally be placed in the joints between wall tiles or in a pipe, but take care not to damage the wall’s moisture barrier
  • Mounting panel art.no. 729491 can also be used for external installation
  • For mains operation different accessories are required:
    - Alternative 1: AC adapter art.no. S600131 and power supply art.no. S600129, alternatively transformer art.no. S600128, plus extension cable (5 m) art.no. S600127
    - Alternative 2: AC adapter art.no. S600131 and voltage distributor art.no. 729499, plus extension cable (10 m) art.no. 729488.AE

    Tronic WMS:
  • With wireless connection to the Tronic WMS system (gateway and subscription required) alternatives via Dongel (729482) the following opportunities are obtained:
    - Programmable rinsing time from 10–60 seconds
    - Built-in temperature measurements (measures output water temperature)
    - Programmable temperature stop, the mixer will turn off directly at set maximum temperature
    - Flush time control, prevents overflow, maximum flush time 5 min.
    - Adjustable hygiene flushing, interval and flush time (to prevent water becoming stagnant)
    - Logging of all flushings with point of time, water consumption and temperature. - Only with WMS
    - Alarm via SMS or email – Only with WMS
Backflow protection unit type EB
K Mora Tronic compact WMS.png
No. Art no. RSK Description
1 28145000 8221805 Connectors, complete
2 28145100 8221807 Connector, complete

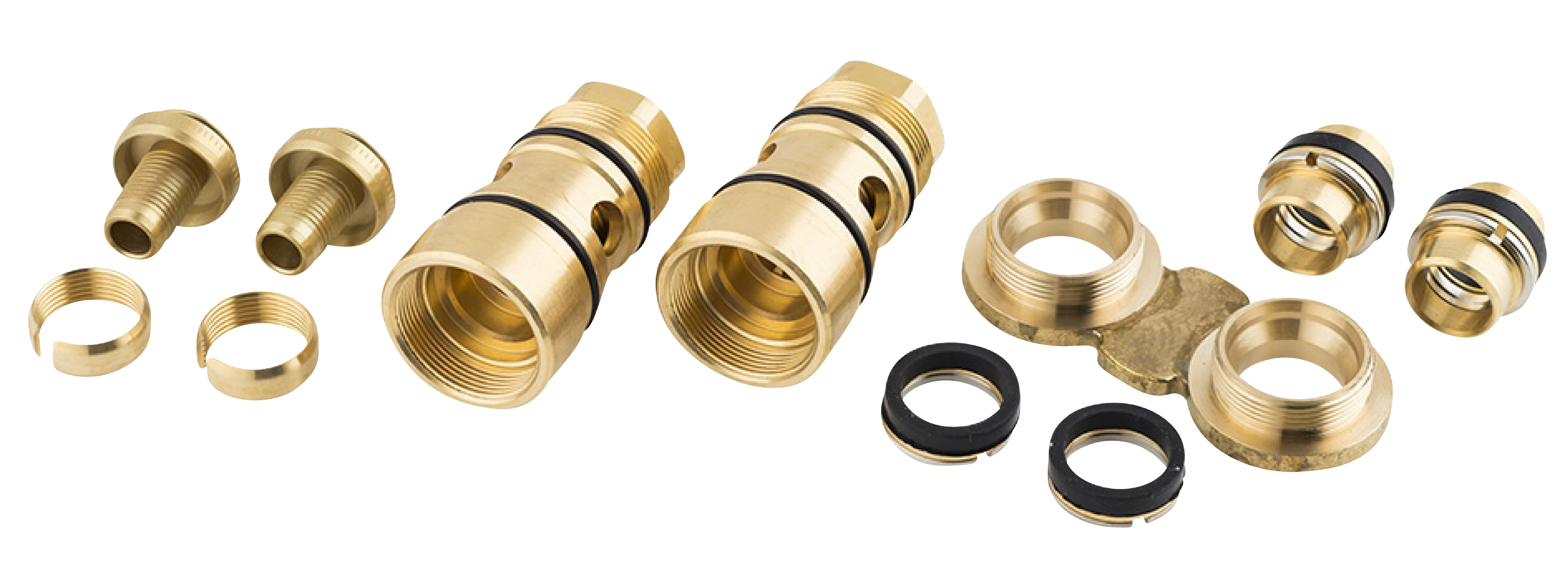

3 729363 8553548 Mounting plate with connection for CU 12-15 and PEX 15

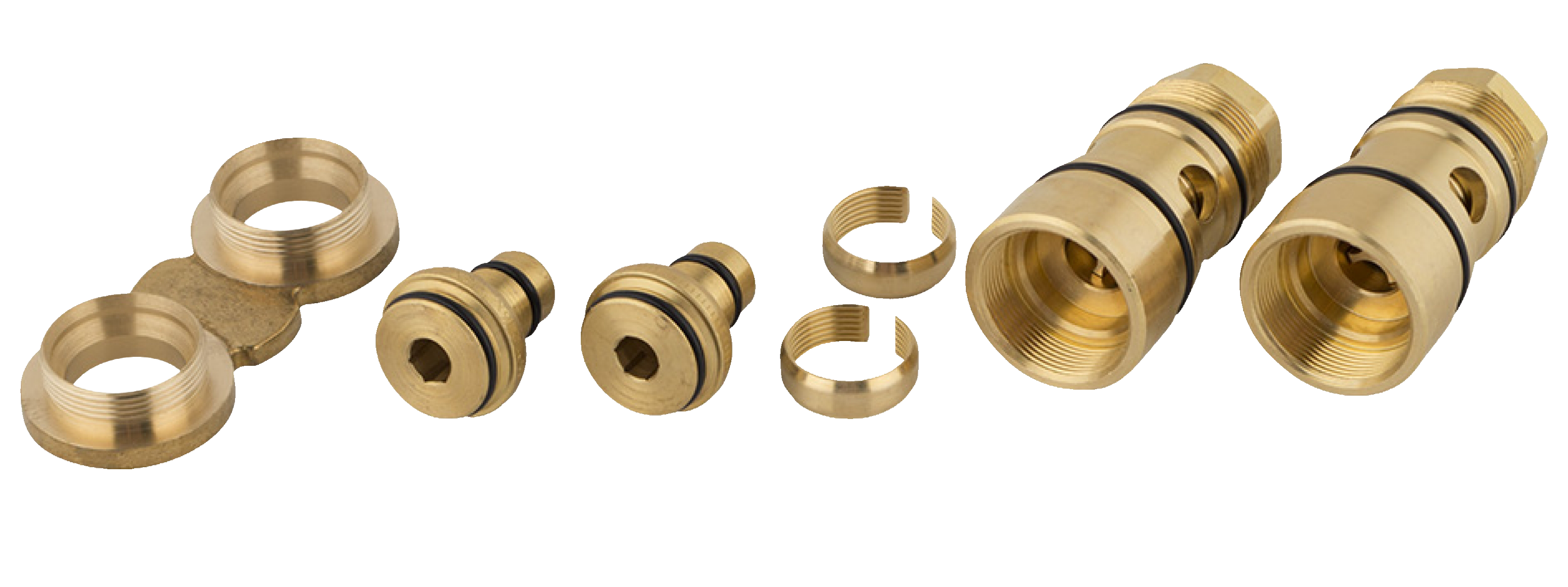

4 28141600 8221804 Mounting plate with connection for PEX 16, ALU-PEX 16
5 632405 8543470 Coupling kit, PE-X 15
6 632308 8543365 Gasket kit, CU 12
7 632309 8543367 Gasket kit, CU 15
8 632440 8543482 Coupling kit, PE-X 16
9 38147000 8221811 Thermosatic cartridge, for thermal disinfection against legionella
10 729510.AE Solenoid valve
11 729466.AE Electronic unit
12 S600135 8483191 Battery
13 S600131 8483190 AC adapter
14 729303.AE 8126215 Shower strainer
15 729426.AE O-ring sats
16 729389.AE Shower strainer, complete

Byggvarubedömningen

modal.bvb.desc;

Accepted installation instructions

Leadfree

Lead Free means that we have replaced the lead normally found in brass alloys. In this way, we get products with less environmental impact. Lead Free-labeled products contain less than 0.1% lead and are thus classified as lead-free.

Energyclass

The table below the product shows the energy class of the mixer. Certificates for energy labeling can be found under documents.
