MORA tronic shower panel WMS, with thermostatic function, mains operation

Find retailers
Description
Mains operated, included 10 m extension cable
Article number
720177
GTIN
7391887253430

PROPERTIES

  • Thermostatic function, with adjustable temperature
  • Mains operation (excl. transformer). Incl. AC adapter and 10 m extension cable

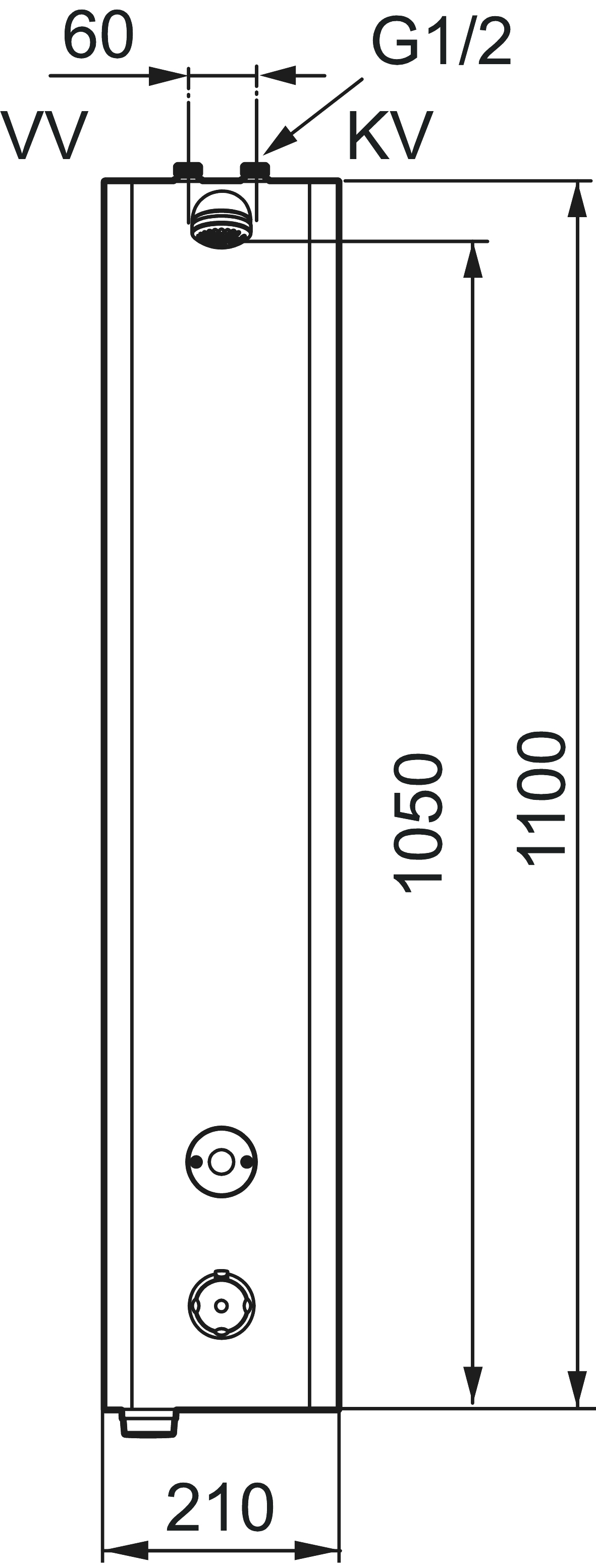

  • Connection up G1/2", included ball valve
  • With solenoid valve and filter
  • Programmable start button. Rinsing time from 10–60 seconds, (30 seconds is the factory preset)
  • Flush Timeout - safety shut-off to prevent flooding, maximum of 5 minutes
  • Jet angle adjustable +/- 5°
  • Flow limiter 9 l/min
  • Stainless look
  • Can be turned off by solenoid valve (eg for cleaning)
  • Equipped with system for thermal disinfection against legionella
  • IP class sensor, IP67
  • Approved non-return valves, EN-Standard EN1717

    Installation:
  • Easy to change battery under the service cover without turning off the water supply
  • For mains operation different accessories are required:
    - Alternative 1: Voltage distributor art.no. S600149
    - Alternative 2: Power supply art.no. S600129, alternatively transformer art.no. S600128, plus extension cable (5 m) art.no. S600127

    Tronic WMS:
  • Note! Gateway and subscription or dongle are required for the WMS function
  • The following options are available with wireless connection to our Tronic WMS system:
  • Programmable rinsing time from 10–60 seconds, (30 seconds is the factory preset)
  • Selection of activation type:
    - Saving mode, set time, always flush at the same time, factory preset mode
    - Normal, rinsing time is extended if you press again before it stops
    - Switching mode, set time, reactivation interrupts flushing
  • Adjustable hygiene flushing, interval and rinsing time (in order to prevent stagnant water)
  • Logging of all flushings with point of time, water consumption and temperature for individual mixer or group of mixers (minimum, maximum and average values)
  • Built-in temperature measurements of mixed water temperature
  • Programmable temperature stop, the mixer will turn off directly at set maximum temperature
  • Initiate hot water rinsing
Backflow protection unit type EB
K Mora Tronic duschpanel WMS.png
No. Art no. RSK Description
1 729303.AE 8126215 Shower strainer
2 729512.AE Connection hose, 0,7 m
3 409417.AA 8541628 Cartridge for diverter
4 729509.AE Handle for diverter
5 409419.AE 8938271 Thermostatic cartridge, complete, with service tool
6 S600222 8239545 Temperature handle, complete
7 729459.AE Cover plug for battery, black
8 139835.AE 8199159 Shower hose in metal, 1750 mm
9 130361 8199196 Hand shower
10 729514.AE Flow limiter, constant flow 6 l/min at 200–600 kPa
10 729511.AE Flow limiter, constant flow 9 l/min at 200–600 kPa
10 729515.AE Flow limiter, constant flow 12 l/min at 200–600 kPa
11 729465.AE Electronic unit
12 S600135 8483191 Battery
13 S600132 8438826 AC adapter
14 729510.AE Solenoid valve
15 729513.AE Hose kit, connection behind
16 409364.AE 8346506 Scalding protection ring, (max 42 °C)
17 S600025 8221869 Shower head, complete
